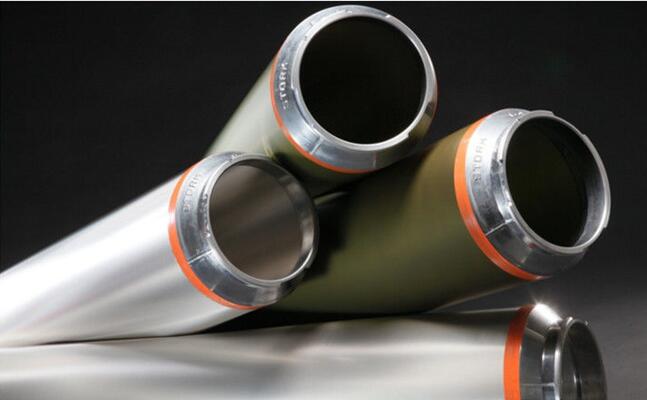

Screen Specification | |||
Repeat(mm) | 530/640/688/725/819/914/1018 | ||
Length(mm) | 1410-3500 | ||
Mesh | Thickness(um) | Open area(%) | Diameter(um) |
25 | 160-165 | 30-32 | 720 |
40 | 145-150 | 28-30 | 318 |
60 | 115-120 | 18-20 | 161 |
70 | 110-115 | 16-18 | 131 |
80 | 110-115 | 16-18 | 105 |
100 | 105-115 | 15-17 | 74 |
105 | 105-115 | 15-17 | 94 |
125 | 100-105 | 14-16 | 79 |
125v | 100-105 | 14-16 | 79 |
135 | 100-105 | 13-15 | 72 |
135v | 100-105 | 13-15 | 72 |
155 | 100-105 | 12-13 | 60 |
165 | 100-105 | 12-13 | 71 |
Note: All"V type screen, the hole arrangement angle is 45°C, especially suitable for geometry printing, eg-square and line, all screen can be repeatedly used for 5-7 times
Rotary Screen Packing | ||||||
Printing Length | Screen Length | Packing/ Per Carton | ||||
mm | mm | R640 | R725 | R819 | R914 | R1018 |
1280 | 1410 | 20 | 20 | 10 | 10 | 10 |
1620 | 1750 | 20 | 20 | 10 | 10 | 10 |
1850 | 1980 | 20 | 20 | 10 | 10 | 10 |
1850 | 2090 | 20 | 20 | 10 | 10 | 10 |
2250 | 2380 | 10 | 10 | 10 | 10 | 10 |
2400 | 2650 | 10 | 10 | 10 | 10 | 10 |
2800 | 2940 | 10 | 10 | 10 | 10 | 10 |
2800 | 3050 | 10 | 10 | 10 | 10 | 10 |
3200 | 3500 | 10 | 10 | 10 | 10 | 10 |
Adaptability of rotary screen process | |
Hafe-tone | 125/155/195 |
Lne/ geometry | 155/165/195 |
Huary fabric with big pattern | 135ED |
Goden silve powder | 135ED |
Bock/ geometry pattern | 165ED |
